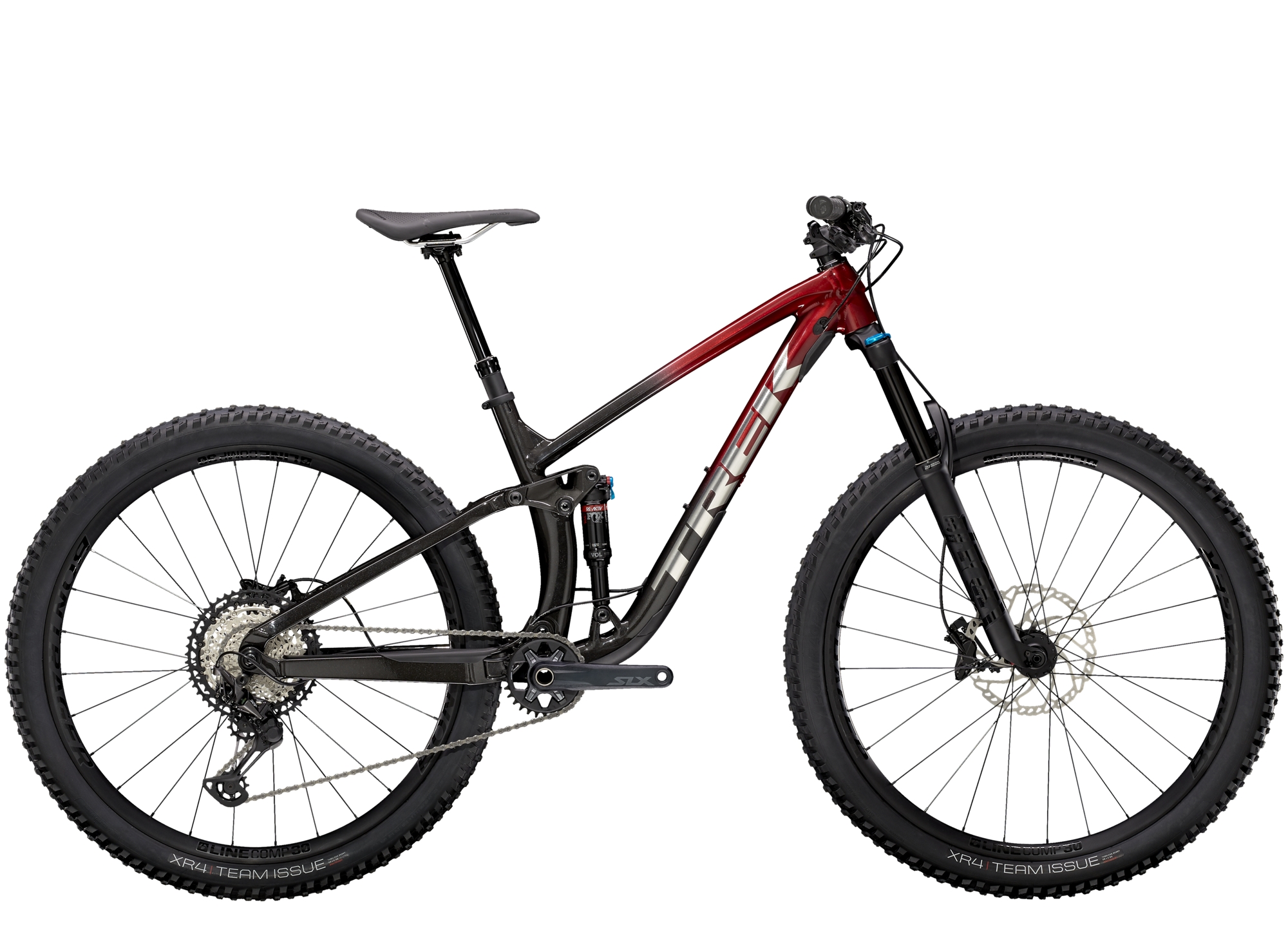

- TREK Fuel EX 8 Gen 5
Characteristics
Why reserve?
- Delivery possible at extra cost
- Personal Assistance (even by phone)
- 1 year free insurance i
- All sellers are verified
Why reserve?
This is a TCS velocorner.ch verified bike dealer. There are over 400 dealers on velocorner. Every single dealer is phyisically visited and checked by velocorner. Only official swiss dealers participate.
To this day there is no standard size used in bike industry. So every manufacturer uses an own sizing table.
To simplify this, TCS velocorner.ch is relying on the BIDEX size chart. This may not match 100% of all sizes but it gives you an input if a size might fit or not, based on your body size.
Check size tableWhen you reserve a bike with a dealer through velocorner, you initially pay only 20% of the purchase price. This deposit is non-binding and will only be transferred to the dealer if you complete the bike purchase. The remaining amount is paid directly at the dealership if the bike fits you.
If the bike does not meet your expectations, you can easily cancel the purchase and receive a full refund of your deposit. There are no fees or additional costs for you.
Additionally, when purchasing through velocorner, you benefit from various advantages, such as a free bike insurance from TCS for one year.
When you reserve a bike with a dealer through velocorner, you initially pay only 20% of the purchase price. This deposit is non-binding and will only be transferred to the dealer if you complete the bike purchase. The remaining amount is paid directly at the dealership if the bike suits you.
If the bike does not meet your expectations, you can easily cancel the purchase and receive a full refund of your deposit. There are no fees or additional costs for you.
Additionally, when purchasing through velocorner, you benefit from various advantages, such as a free bike insurance from TCS for one year.
Upgrade to CHF 5000 or CHF 9000 must be expressly requested.
The insurance coverage can be increased with an upgrade.
17.5" High | 17.5" Low | 18.5" High | 18.5" Low | 19.5" High | 19.5" Low | 21.5" High | 21.5" Low | |
---|---|---|---|---|---|---|---|---|
Riders height | — | — | — | — | — | — | — | — |
Stack | 605 | 609 | 609 | 613 | 609 | 613 | 623 | 627 |
Reach | 445 | 440 | 460 | 455 | 475 | 470 | 500 | 495 |
Stack reach ratio | 1.36 | 1.384 | 1.324 | 1.347 | 1.282 | 1.304 | 1.246 | 1.267 |
Top tube lenght | 602 | 603 | 618 | 619 | 633 | 634 | 662 | 663 |
Seat tube lenght | 420 | 420 | 435 | 435 | 450 | 450 | 500 | 500 |
Seat tube angle | 75.5 | 75 | 75.5 | 75 | 75.5 | 75 | 75.5 | 75 |
Head tube lenght | 100 | 100 | 105 | 105 | 105 | 105 | 120 | 120 |
Head tube angle | 66.5 | 66 | 66.5 | 66 | 66.5 | 66 | 66.5 | 66 |
Chainstay lenght | 436 | 437 | 436 | 437 | 436 | 437 | 436 | 437 |
Bottom bracket drop | 28 | 34 | 28 | 34 | 27 | 34 | 27 | 34 |
Bottom bracket height | 346 | 340 | 346 | 340 | 346 | 340 | 346 | 340 |
Front center | 743 | 744 | 760 | 761 | 775 | 776 | 806 | 807 |
Wheelbase | 1178 | 1179 | 1195 | 1196 | 1210 | 1211 | 1241 | 1242 |
Standover height | 748 | 742 | 751 | 745 | 756 | 750 | 768 | 762 |
Rake | 43 | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
Trail | 116 | 119 | 116 | 119 | 116 | 119 | 116 | 119 |
Frame | Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel |
Fork | Fox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel |
Rear shock | Size: XS, S, Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210 mm x 52.5 mm; Size: S, M, ML, L, XL, XXL, Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210 mm x 55 mm |
Rear derailleur | Shimano XT M8100, long cage |
Crank | Size: XS, S, M, ML, L, Shimano SLX M7100, 30T alloy ring, 52 mm chainline, 170 mm length; Size: XL, XXL, Shimano SLX M7100, 30T alloy ring, 52 mm chainline, 175 mm length |
Bottom bracket | Shimano MT500, 92 mm, PressFit |
Shifters | Shimano XT M8100, 12-speed |
Cassette | Shimano XT M8100, 10-51, 12-speed |
Chain | Shimano SLX M7100, 12-speed |
Brakes | Size: XS, S, M, ML, L, XL, XXL, Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper; Size: XS, S, M, ML, L, XL, XXL, SRAM DB 8 4-piston hydraulic disc |
Disc rotors | Size: XS, S, M, ML, L, XL, XXL, Shimano RT66, 6-bolt, 180 mm; Size: XS, S, M, ML, L, XL, XXL, SRAM CentreLine, 6-bolt, round-edge, 180 mm; Size: M, ML, L, XL, XXL, Shimano RT66, 6-bolt, 203 mm; Size: M, ML, L, XL, XXL, SRAM CentreLine, 6-bolt, round-edge, 200 mm |
Rims | Bontrager Line Comp 30, Tubeless-Ready |
Spokes | Size: XS, S, DT Swiss Champion, J-Bend, Black; Size: S, M, ML, L, XL, XXL, 14 g stainless steel, black |
Front hub | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
Rear hub | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
Tires | Size: XS, S, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.40''; Size: XS, S, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.60"; Size: XS, S, Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5 x 2.50"; Size: S, M, ML, L, XL, XXL, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.40"; Size: S, M, ML, L, XL, XXL, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29 x 2.60"; Size: S, M, ML, L, XL, XXL, Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" |
Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom |
Stem | Size: XS, S, Bontrager Line, 35 mm, 0-degree, 40 mm length; Size: XS, S, Bontrager Elite, 35 mm, 0-degree, 35 mm length; Size: M, ML, L, XL, XXL, Bontrager Line, 35 mm, 0-degree, 50 mm length; Size: M, ML, L, XL, XXL, Bontrager Elite, 35 mm, 0-degree, 45 mm length |
Handlebar | Size: XS, S, Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width; Size: M, ML, L, XL, XXL, Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
Seatpost | Size: XS, S, Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length; Size: M, ML, L, XL, XXL, Bontrager Line Dropper, 150 mm travel, internal routing, 31.6 mm, 440mm length |
Grips | Bontrager XR Trail Elite, nylon lock-on |
