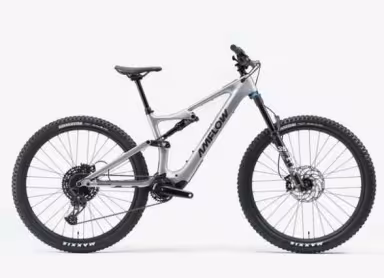

The E-Mountainbike Amflow PL offers an impressive peak power of 850 watts and is designed to be ultra-lightweight at 19.2 kg. With its unique blend of power, range, weight, and smart features, this innovative E-MTB is perfect for trail enthusiasts.
5 Modes, Efficient Assistance The Auto Mode adjusts support in real-time, while the Boost Mode delivers a torque of 120 Nm with 1000 W support.
Powerful Drive The lightweight 2.52 kg motor provides a continuous torque of 105 Nm and a peak power of 1000 W.
Ultra-lightweight Frame The 19.2 kg construction features a carbon frame that weighs only 2.27 kg for maximum speed and agility.
800Wh Battery, 3x Fast Charging The DJI Avinox Drive System with an 800 Wh battery enables a range of 157 km.
Flexible Geometry The frame design of the Amflow PL has a head tube angle of 64.5°, a chainstay length of 445 mm, and a seat tube angle of 77°.
Integrated Touchscreen The 2" OLED touchscreen displays real-time ride data with range information, and the Avinox App provides remote location features.
Intelligent Walk Assist The Walk Mode with Auto Hold prevents rolling backward and offers hill-start assistance as well as shifting while stationary.
Please note:
The DJI Avinox M1 Drive Unit has a nominal power of 250 W and a peak power of 850 W. It can continuously generate a torque of 105 N·m. In Boost mode, it can deliver a torque of 120 N·m for 30 seconds with an output power of 1000 W.
Weight specifications refer to the total weight of the Amflow PL Carbon Pro in size M, equipped with tubeless tires. The actual product weight may vary due to deviations in material batches and external factors.
Amflow PL comes with a 12A/508W charger that charges three times faster than a 4A/168W charger.
Charging time from 0% to 75% in a laboratory environment at 25 °C is approximately 89 minutes for the 600 Wh battery and about 96 minutes for the 800 Wh battery. These figures are for reference only, and actual user experiences may vary.
