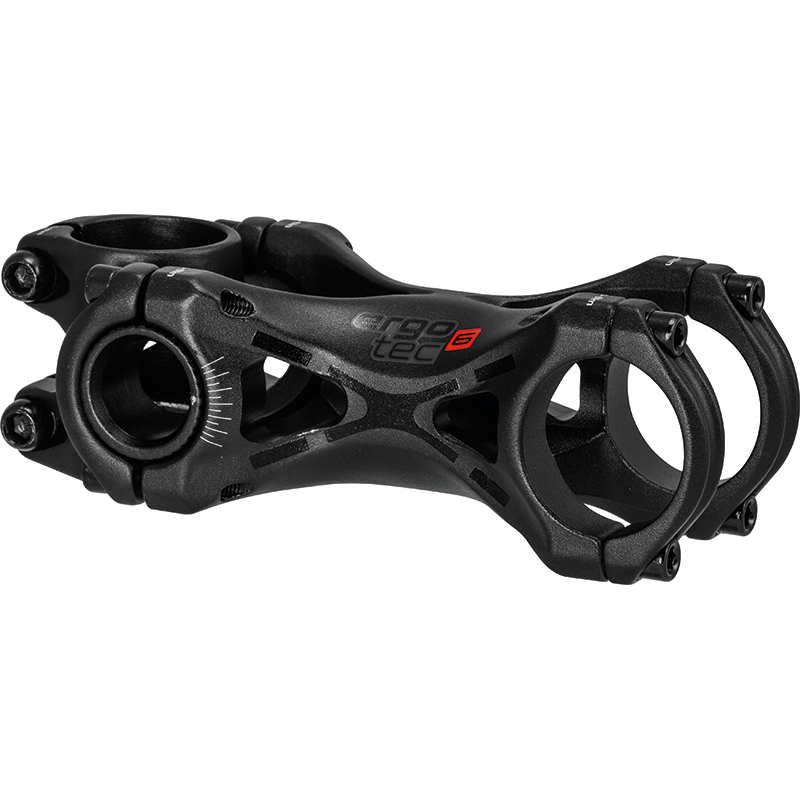

Ergotec Swell-XR Ahead Stem | 31.8 mm – Your Upgrade for More Control and Comfort

Are you ready for a true performance boost at the handlebars? The Ergotec Swell-XR is an extremely stable, yet surprisingly light and adjustable Ahead stem designed for the highest loads – even in the e-bike sector up to fast S-Pedelecs reaching 45 km/h! Thanks to Safety Level 6, the highest safety rating from Ergotec, you can rely on maximum stability and durability – whether on tours, in everyday use, or during sporty rides.

✅ Your Benefits at a Glance:

• Highest Safety (Safety Level 6): Suitable for fast e-bikes up to 45 km/h
• Individually Adjustable: Angle from -20° to +40° for your perfect seating position
• 3D-Forged Aluminum: Ultra-stable and simultaneously lightweight (only about 216 g)
• Top Control & Comfort: Thoughtful geometry with significant height and length gains
• Versatile Use: For city, trekking, touring, or sporty rides
• Clean Look: Black sandblasted surface for modern design
• Easy Installation: Secure and straightforward installation thanks to a 4-bolt clamp

Technical Specifications

• Handlebar Clamp: 31.8 mm
• Fork Clamp: 28.6 mm (1 1/8 inch)
• Reach (Length): 100 mm
• Clamp Height: 45 mm
• Angle Adjustment: -20° to +40°
• Effective Height Gain: -30 / 0 / +55 mm
• Effective Length Gain: 90 / 100 / 80 mm
• Material: Aluminum 6061 T6
• Surface: Black, sandblasted
• Weight: approx. 216 g
• Safety Level: 6 (also for S-Pedelecs)

Who is the Swell-XR Made For?

The Ergotec Swell-XR is aimed at all cyclists who value safety, ergonomics, and flexibility – especially in the case of e-bikes. The ability to make precise angle adjustments makes it the optimal choice for touring cyclists, commuters, and sporty e-bikers looking to optimize their seating position.

Delivery Contents

1x Ergotec Swell-XR Ahead Stem
Including mounting screws & instructions
