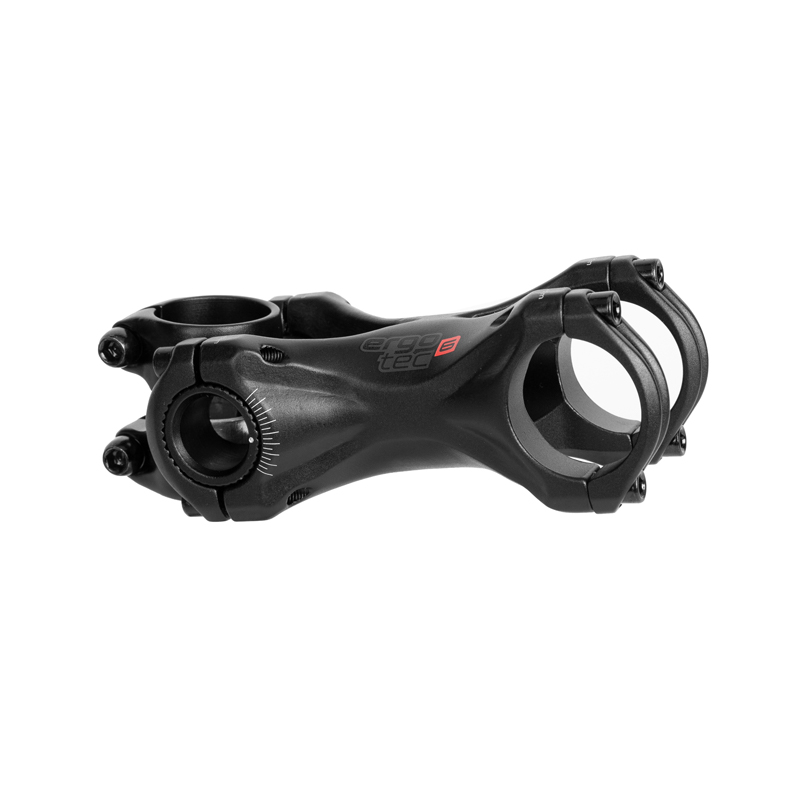

Ergotec Swell-X | 35.0 Ahead Stem – For Maximum Control & Individual Ergonomics Do you want maximum control, top stability, and ergonomic riding comfort – even at high speeds? Then the Ergotec Swell-X | 35.0 Ahead Stem is exactly the upgrade your bike deserves. With its extremely robust design, Safety Level 6, and large angle adjustment range, you are ready for any terrain – even on fast e-bikes up to 45 km/h. Your Advantages at a Glance:

• ✅ Highest Safety: Safety Level 6 – suitable for e-bikes and fast S-Pedelecs up to 45 km/h
• ✅ Individually Adjustable: Large adjustment angle from -20° to +40° for optimal handlebar position
• ✅ 35.0 mm Oversize Clamping: For maximum stability and precise steering behavior
• ✅ Strong Material Mix: Made from high-quality Aluminium 6061 T6 – lightweight and durable
• ✅ Long-lasting Surface: In elegant black sandblasted finish
• ✅ More Comfort: Effective height and length gain for perfect ergonomics
• ✅ Sporty and Versatile: Ideal for MTB, trekking, and e-bike applications
• ✅ Ready for Performance: Perfect power transmission during demanding rides

Technical Specifications in Detail:

• Handlebar Clamping: 35.0 mm
• Fork Clamping: 28.6 mm (1 1/8 inch)
• Reach (Length): 100 mm
• Clamp Height: 45 mm
• Angle Adjustment: -20° to +40°
• Effective Height Gain: -30 / 0 / +55 mm
• Effective Length Gain: 90 / 100 / 80 mm
• Material: Aluminium 6061 T6
• Surface: Black, sandblasted
• Weight: approx. 261 g
• Safety Level: 6 (suitable for e-bikes and S-Pedelecs)

Why Safety Level 6 is Critical: The Ergotec Safety Level 6 guarantees the highest safety – especially for the increased requirements of modern e-bikes and fast S-Pedelecs up to 45 km/h. It is the highest safety level in the Ergotec system, representing maximum load capacity and tested quality according to the toughest standards. Scope of Delivery: 1x Ergotec Swell-X | 35.0 Ahead Stem
