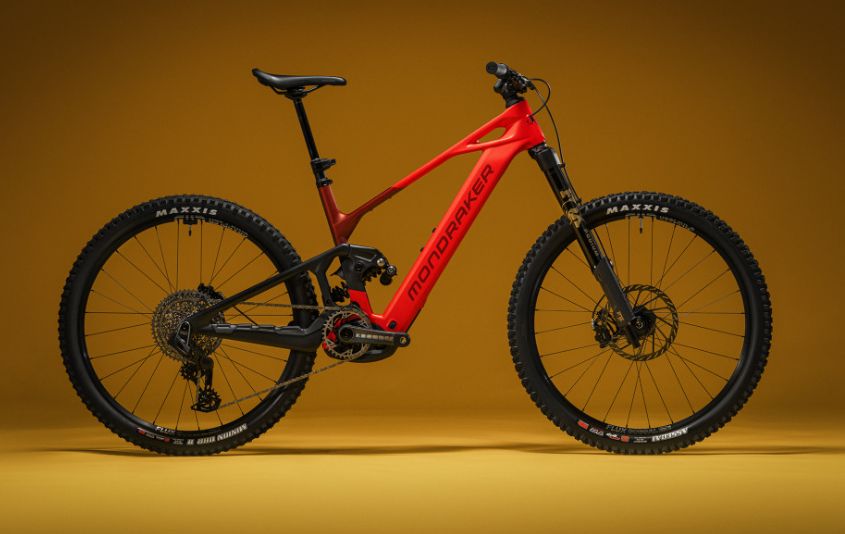

2025 Mondraker CRAFTY CARBON XR for sale - New, Multicolor, M-L

Product Description

—

Characteristics

BrandMondraker
MotorBosch, New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
ModelCRAFTY CARBON XR
Speed25 km/h
TypeFully
Battery capacity600 Wh
Model year2025
GenderUnisex
ConditionNew
Frame sizeM-L
ColorMulticolor

Frame materialCarbon, Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Battery capacity600
Wheel size29"
TransmissionSRAM
Brake brandSRAM
BrakeHydraulic disc brake, Front: SRAM Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
SuspensionFull suspension
Travel170mm
SeatpostOnoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Fork brandNSR
ForkÖhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Rear shock brandEDCO
Rear shockÖhlins TTX22M.2 185x55mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Weight in kg22.90kg
Motor PositionMid drive
HandlebarOnoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
StemOnoff S9 30mm 0º, Full CNC, 31.8mm barbore
GripsOnoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
ShiftersSRAM Eagle AXS Pod MMX, 12s
DerailleurSRAM X0 Eagle AXS, T-Type, 12s
ChainSRAM GX Eagle T-Type, 12s, Powerlock
RimMavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Hub frontMavic, Boost 15x110mm, IS 6 bolts
Hub rearMavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
TiresFront: Maxxis Assegai 29x2.6WT, tubeless ready, 3C MAXX GRIP compound, DD protection, DH casing, 60x2TPI, folding bead, Rear: Maxxis Minion DHR II 29x2.6 WT, tubeless ready, 3C MaxxTerra comp
SpokesMavic straight-pull double butted, contactless lacing
Brake LeversSRAM Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
DisplayPurion 400 / Bosch Mini Remote / Bosch System Controller
