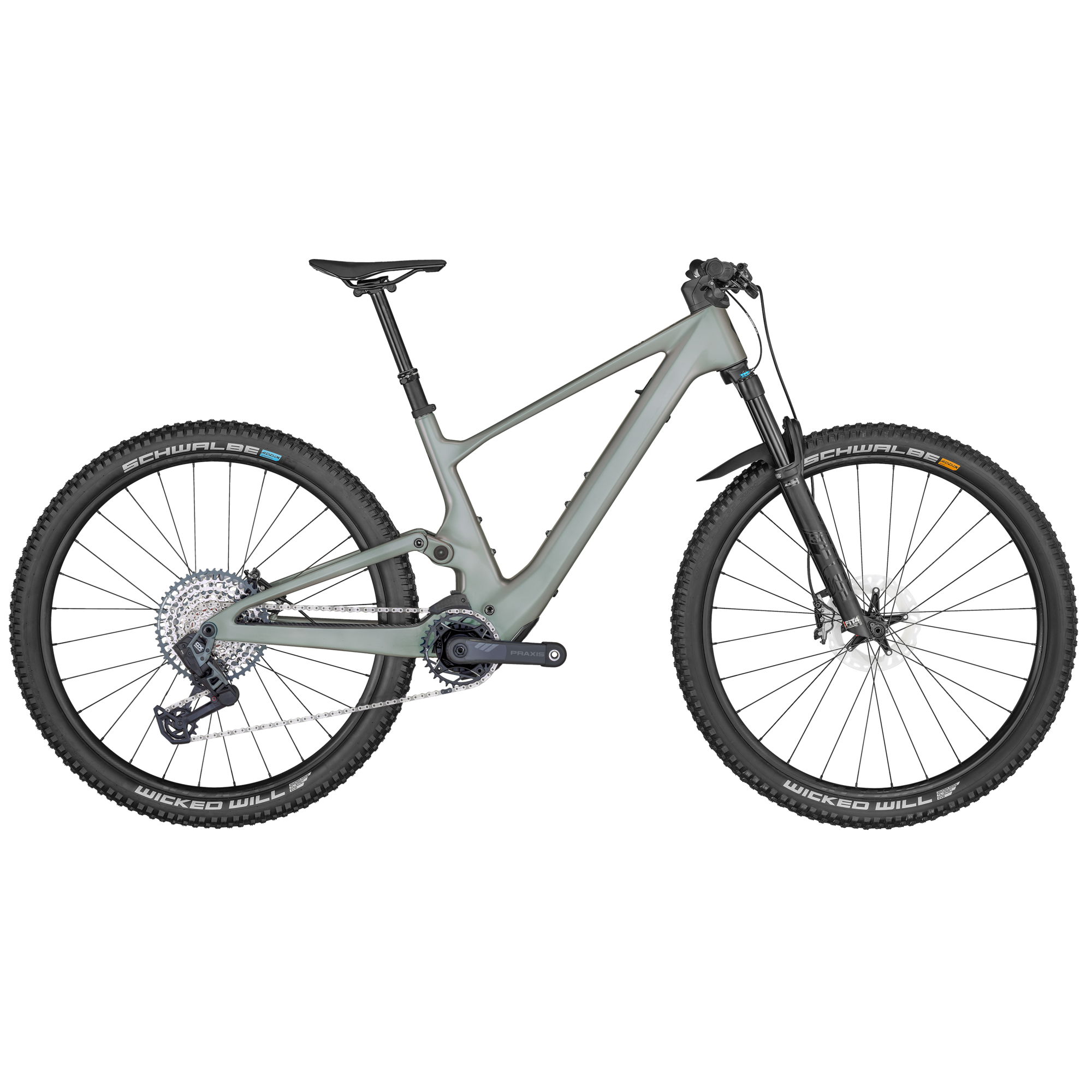

SCOTT Lumen eRIDE 900 TR

CHF 9'999.-

MAHU Bike und Sportshop

100% Money-Back Guarantee i

Free request

...

I am unsure and have a question

Why reserve?

Delivery possible at extra cost
Personal Assistance (even by phone)
1 year free insurance i
All sellers are verified

Characteristics

Brand SCOTT

Model Lumen eRIDE 900 TR

Motor TQ

Speed 25 km/h

Bike Type Crosscountry

Battery capacity 360Wh

Model year 2024

Gender Men

Frame size

Large

19 inches

Condition New

Color Green , Martin Green

Frame material Carbon

Wheel Size 29"

Transmission SRAM , SRAM GX Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System

Brake Brand Shimano

Brakes Other , Shimano XT / BR-M8120 4 Piston

Suspension Full suspension , FOX 34 Float Performance Elite Air FIT4, 3-Modes with low Speed adj. / Kabolt 15x110mm axle, 44mm offset / tapered steerer / Reb. Adj. / Lockout, 130mm travel

Seatpost FOX Transfer Dropper Post, 31.6mm / S size 125mm / M size 140mm, L size 150mm / XL size 175mm

Weight in kg 16.00

Motor Position Mid drive

More data found by AI

Why reserve?

Delivery possible at extra cost
Personal Assistance (even by phone)
1 year free insurance i
All sellers are verified

About Seller

MAHU Bike und Sportshop

MAHU Bike und Sportshop

Verified dealer

More bikes of this dealer

SCOTT Voltage JR

Child / youth

Size: 20"

Region: Freiburg

SCOTT Contessa 24 rigid

Child / youth

Size: 24"

Region: Freiburg

SCOTT Genius 700

All-Mountain

Size: S

Region: Freiburg

SCOTT Contessa 14

Child / youth

Size: 14"

Region: Freiburg

BMC Twostroke AL 24

Child / youth

Size: 24"

Region: Freiburg

SCOTT Addict RC Ultimate Frameset

Racing Bike

Size: M

Region: Freiburg

SCOTT Scale Rc 600

Crosscountry

Size: 26"

Region: Freiburg

SCOTT Contessa Genius 920

All-Mountain

Size: S

Region: Freiburg

SCOTT Aspect 960

Hardtail

Size: M

Region: Freiburg

BMC Twostroke AL FIVE

Hardtail

Size: L

Region: Freiburg

SCOTT Foil RC 10

Racing Bike

Size: L

Region: Freiburg

SCOTT Strike eRIDE 910 EVO

All-Mountain

Size: XL

Region: Freiburg

Similar

Coming soon

SCOTT Lumen eRIDE 900 TR

Crosscountry

Size: M

Region: Bern

SCOTT Lumen eRIDE 900 TR

Crosscountry

Size: M

Region: Vaud

SCOTT Lumen eRIDE 900 TR

Crosscountry

Size: M

Region: Bern

SCOTT Lumen eRIDE 900 TR

Crosscountry

Size: L

Region: Vaud

SCOTT Lumen eRIDE 900 TR

Crosscountry

Size: L

Region: Freiburg

SCOTT Lumen eRIDE 900 TR

Crosscountry

Size: S

Region: Freiburg

CHF 9'999.-

...

	SM	MD	LG	XL
Riders height	158	168	178	186
Stack	615	615	625	638
Reach	416	446	476	501
Stack reach ratio	1.478	1.379	1.313	1.273
Top tube lenght	562	589	620	645
Seat tube lenght	415	440	480	520
Seat tube angle	76.8	77	77.2	77.5
Head tube lenght	110	110	120	135
Head tube angle	65.5	65.5	65.5	65.5
Chainstay lenght	450	450	450	450
Bottom bracket drop	38.5	38.5	38.5	38.5
Bottom bracket height	338.5	338.5	338.5	338.5
Front center	729	759	793	823
Wheelbase	1176	1206	1240	1270
Standover height	765	767	780	800
Rake	45	45	44	43
Trail	126	126	126	126
Stem lenght	50	60	70	70
Crank length	170	170	175	175

Riders height

158

168

178

186

Stack

615

625

638

Reach

416

446

476

501

Stack reach ratio

1.478

1.379

1.313

1.273

Top tube lenght

562

589

620

645

Seat tube lenght

415

440

480

520

Seat tube angle

76.8

77.2

77.5

Head tube lenght

110

120

135

Head tube angle

65.5

Chainstay lenght

450

Bottom bracket drop

38.5

Bottom bracket height

338.5

Front center

729

759

793

823

Wheelbase

1176

1206

1240

1270

Standover height

765

767

780

800

Rake

Trail

126

Stem lenght

Crank length

170

175

Frame	Carbon HMX; Integrated Suspension Technology; Flex Pivot / Adjustable head angle; Syncros Cable Integration System; TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
Fork	FOX 34 Float Performance Elite Air FIT4; 3-Modes with low Speed adj. / Kabolt 15x110mm axle; 44mm offset / tapered steerer / Reb. Adj. / Lockout; 130mm travel
Rear shock	FOX NUDE 5T EVOL Trunnion; SCOTT custom w. travel / geo adj.; 3 modes: Lockout-Traction Control-Descend; Custom large Air volume / DPS / Reb. Adj.; Travel 130-90-Lockout / T165X45mm
Rear derailleur	SRAM GX Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System
Crank	FSA Carbon crankset / 175mm / 34T
Shifters	SRAM GX Eagle AXS Rocker Controller
Cassette	SRAM GX Eagle XS 1275 Transmission 10-52
Chain	SRAM CN GX Eagle Transmission
Chain guide	ethirteen / espec Slider
Brakes	Shimano XT / BR-M8120 4 Piston
Disc rotors	Front: RT-MT800 CL 180mm / Rear: RT-EM810 CL 180mm
Rims	Syncros Silverton 1.5-30 CL; F: 15x110mm; R: 12x148mm; 30mm Tubeless ready rim 28H / XD Driver; Syncros Axle w/Removable Lever; with 6mm Allen; T30 and T25 Tools
Tires	Front: Schwalbe Wicked Will 29x2.4" EVO; Super Race / TLE / 67EPI / Addix Speed Soft, Rear: Schwalbe Wicked Will 29x2.4" EVO; Super Race / TLE / 67EPI / Addix Speed Grip
Headset	Syncros - Acros Angle adjust & Cable Routing HS System; Stainless; +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB
Handlebar	Syncros Fraser iC SL DC Carbon; 0° rise / back sweep 8° / mini Rise / 760mm; Syncros Performance XC lock-on grips
Saddle	Syncros Tofino 1.5 Regular; Titanium rails
Seatpost	FOX Transfer Dropper Post; 31.6mm / S size 125mm / M size 140mm; L size 150mm / XL size 175mm
Motor	TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
Battery	TQ Internal 360Wh
Display	TQ HPR; Bluetooth / ANT+ / Dedicated Smartphone app
Charger	TQ 100-240V-4A
